Inverse Folding with PoET-2 for Novel Generation of Small Luciferases#

In this tutorial, we’ll use PoET-2 to perform inverse folding - the task of designing novel protein sequences that adopt a desired three-dimensional structure.

Objective We’ll use PoET-2 to generate novel small luciferases that:

  • Fold into the same structure as the small luciferase from deep-sea shrimp Oplophorus gracilirostris (UniProt ID: LUCI_OPLGR)

  • Have low sequence identity to known proteins, ensuring novelty

  • Preserve critical residues in the active site to maintain catalytic activity

Why Luciferases? Luciferases catalyze bioluminescent reactions. These enzymes are invaluable in biotechnology applications including:

  • Reporter gene assays

  • In vivo imaging

  • ATP detection

  • Cell viability tests

  • Protein interaction studies

Small luciferases are particularly of interest, because they are less likely to interfere with the subject being studied. However, the design of novel small luciferases is challenging because natural small luciferases have few or no known sequence homologs. Due to the lack of sequence homologs, we’ll condition PoET-2 on structural homologs. PoET-2’s in-context learning capabilities allow it to learn from these structural homologs to improve design success rates despite their low sequence identity to the target protein.

Prerequisites#

  1. Download the necessary data

    1. Create the directory data in the working directory of this notebook, if it doesn’t already exist.

    2. Download the file PoET-2_inverse_folding_small_luc_example.zip. This file contains the sequences and structures used to create the prompt for PoET-2.

    3. Unzip the file in the data directory. You should end up with a new directory, data/PoET-2_inverse_folding_small_luc_example, located in the working directory of this notebook.

  2. Install the necessary Python packages, including

    • openprotein-python>=0.6.3

    • numpy

    • pandas

    • scipy

    • matplotlib

    • seaborn

[1]:

import json
from pathlib import Path

import numpy as np
import pandas as pd

import matplotlib.pyplot as plt
import seaborn as sns

import gemmi

import openprotein
import openprotein.fasta as fasta
from openprotein.protein import Protein

DATA_DIR = Path("data/PoET-2_inverse_folding_small_luc_example")

Create the prompt for PoET-2#

To instruct PoET-2 to perform inverse folding, we need to construct a prompt that specifies the task. A prompt consists of two components:

  • Query: A single, partially specified protein that defines explicit sequence and/or structure constraints for the target design. PoET-2 will complete the unspecified residues in the query sequence while preserving any provided constraints.

  • Context: A set of proteins related to the target, which implicitly defines the relevant fitness landscape. In our case, since we’re interested in generating sequences with structure similar to LUCI_OPLGR, the context will consist of its structural homologs.

Create the query#

To specify the query, we’ll use the Protein class, which represents a protein with both sequence and structure information. The Protein class is constructed from four main fields:

  • sequence: the sequence of the protein

  • coordinates: an array containing the 3D coordinates of the heavy atoms of the protein in atom37 format. It has shape (L, 37, 3), where L is the length of the protein, 37 is the number of heavy atoms, and 3 is the number of coordinates (x, y, and z).

  • plddt: an array of shape (L,). For predicted structures, this contains the pLDDT of each residue, which is a measure of prediction confidence. For experimental structures, this should be set to 100 if the coordinates of the alpha carbon are known, and NaN otherwise.

  • name: (optional) the name of the protein

We can easily create Protein objects from structure files using the helper function Protein.from_filepath. In this case, we’ll use the file 8bo9.cif, which contains the experimentally solved structure of NanoLucCTZ (PDB ID: 8BO9), an optimized variant of LUCI_OPLGR with significantly higher luminescence when paired with the substrate CTZ.

[2]:

structure_filepath = DATA_DIR / "structures" / "8bo9.cif"
query = Protein.from_filepath(path=structure_filepath, chain_id="A")

Let’s inspect the fields of our query object to verify that the structure file was parsed correctly:

[3]:

print("sequence:", query.sequence)
print("coordinates shape:", query.coordinates.shape)
print("plddt shape:", query.plddt.shape)
print("name:", query.name)

sequence: b'MHHHHHHSDNMVFTLEDFVGRWRQTAGYNLDQVLEQGGVSSLFQNLGVSVTPIQRIVLSGENGLKIDIAVIIPYEGLSGDQMGQIEKIFKVVYPVDDHHFRVILHYGTLVIDGVTPNMIDYFGRPYEGIAVFDGKKITVTGTLWNGNKIIDERLINPDGSLLFRVTINGVTGWRLCERILA'
coordinates shape: (181, 37, 3)
plddt shape: (181,)
name: 8bo9

We now have a Protein object representing the full sequence and structure of NanoLuc. Since our task is to redesign all the residues except the active site residues while preserving the overall protein structure, we’ll mask out just the sequence at all positions except the active site, while leaving the structure alone:

[4]:

# NB: active site positions are 1-indexed
active_site_positions = np.array([30, 33, 34, 43, 52, 68, 70, 104, 106, 119, 121, 122, 126, 149, 151, 163, 165, 174])  # fmt: skip
# mask the sequence at all residues except at active site positons
query = query.mask_sequence_except_at(active_site_positions)

Inspecting the new query sequence, we see that masked residues are represented by the character X.

[5]:

print("sequence:", query.sequence)

sequence: b'XXXXXXXXXXXXXXXXXXXXXXXXXXXXXLXXVLXXXXXXXXFXXXXXXXXPXXXXXXXXXXXXXXXIXVXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXLXYXXXXXXXXXXXXIXYFXXXYXXXXXXXXXXXXXXXXXXXXXXIXDXXXXXXXXXXXFXVXXXXXXXXRXXXXXXX'

Lastly, observe that the original, unmasked sequence has an “SDN” his-tag linker at the N-terminus; we don’t need the model to generate this, so we remove it:

[6]:

sdn_linker = b"MHHHHHHSDN"
query, active_site_positions = query[len(sdn_linker):], active_site_positions - len(sdn_linker)
print("sequence:", query.sequence)
print("length:", len(query))

sequence: b'XXXXXXXXXXXXXXXXXXXLXXVLXXXXXXXXFXXXXXXXXPXXXXXXXXXXXXXXXIXVXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXLXYXXXXXXXXXXXXIXYFXXXYXXXXXXXXXXXXXXXXXXXXXXIXDXXXXXXXXXXXFXVXXXXXXXXRXXXXXXX'
length: 171

We have now created a query that defines the sequence and structure constraints on the protein we want to generate!

Create the context#

Next, we create a context consisting of structural homologs of LUCI_OPLGR/NanoLuc, identified using Foldseek.

In this section, we demonstrate how to create a context from structure files and FASTA files containing the structures and sequences of the homologs. Below is a high-level overview of how these files were generated; code examples are provided in the Appendix of this notebook:

  1. Search for structural homologs: Use Foldseek to search for structural homologs in two structure databases - PDB and AlphaFoldDB (AFDB).

  2. Sample a diverse subset from each database:

    1. Filter out sequences with high identity to LUCI_OPLGR/NanoLuc to encourage novelty.

    2. Create a multiple sequence alignment (MSA) of the remaining sequences.

    3. Compute pairwise sequence identities using the MSA.

    4. Perform hierarchical clustering using pairwise identity as the distance metric.

    5. Select a desired number of clusters and extract the cluster centroids as representative sequences.

  3. Combine results: Merge the selected sequences and structures from both PDB and AFDB to form the final context.

The resulting context includes structural homologs from both PDB and AFDB. The PDB portion is composed of Protein objects instantiated directly from PDB structure files:

[7]:

pdb_context: list[Protein] = []
# 1. The file `DATA_DIR / "context_pdb_chains.csv"` contains a list of PDB chains that are
#    structural homologs of LUCI_OPLGR/NanoLuc.
context_pdb_chains_df = pd.read_csv(DATA_DIR / "context_pdb_chains.csv")
# 2. The structure files of these PDB chains are already downloaded under `DATA_DIR / structures`.
#    We create Protein objects from these structure files, remove His tags, and add them to
#    pdb_context.
for pdb_id, chain_id in context_pdb_chains_df.itertuples(index=False):
    # create Protein object from structure file
    protein = Protein.from_filepath(
        DATA_DIR / "structures" / f"{pdb_id}.cif", chain_id=chain_id, verbose=False
    )
    # remove His tags
    his_tag = b"H" * 6
    while his_tag in protein.sequence:
        i = protein.sequence.index(his_tag)
        protein = protein[:i] + protein[i + len(his_tag) :]
    pdb_context.append(protein)
print("Number of homologs from PDB:", len(pdb_context))
print("Total length of proteins from PDB:", sum(len(p) for p in pdb_context))

Number of homologs from PDB: 100
Total length of proteins from PDB: 20174

For the AFDB portion of the context, we include only the sequences of the structural homologs, and not their predicted structures. While predicted structures can certainly be used in the context, we found them to be unnecessary in this case. Since structural information of these proteins isn’t required, these homologs could be added to the context as simple byte strings or plain strings rather than Protein objects. However, we’ll make use of Protein objects anyways, as Protein objects allow us to associated sequences with names, and the names may be helpful for us to quickly identify what proteins are in the context in the future:

[8]:

afdb_context: list[Protein] = []
for name, sequence in fasta.parse_stream(
    Path(DATA_DIR / "context_afdb_sequences.fasta").open("rb")
):
    afdb_context.append(Protein(sequence=sequence, name=name))
print("Number of homologs from AFDB:", len(afdb_context))
print("Total length of proteins from AFDB:", sum(len(p) for p in afdb_context))

Number of homologs from AFDB: 300
Total length of proteins from AFDB: 62007

Finally, we merge the contexts from each database into a single list, creating the final context.

[9]:

context = pdb_context + afdb_context
print("Total homologs in context:", len(context))
print("Total length of proteins in context:", sum(len(p) for p in context))

Total homologs in context: 400
Total length of proteins in context: 82181

Generate novel sequences via inverse folding with PoET-2#

Now that we have a prompt (query and context) describing the sequence generation task, we can use PoET-2 to generate some novel and functional sequences!

Connect to the OpenProtein.AI API#

[10]:

def get_session():
    with open("secrets.config", "r") as f:
        config = json.load(f)
    return openprotein.connect(config["username"], config["password"])

session = get_session()

Create the prompt#

[11]:

# replace the following with an existing prompt_id to reuse an existing prompt
prompt_id: str | None = "23213d56-2095-4f46-aac8-0616444c1fc4"
if prompt_id is None:
    prompt = session.prompt.create_prompt(
        context=context, query=query, name="PoET-2_inverse_folding_small_luc_example"
    )
else:
    prompt = session.prompt.get_prompt(prompt_id)
prompt

[11]:

PromptMetadata(id='23213d56-2095-4f46-aac8-0616444c1fc4', name='PoET-2_inverse_folding_small_luc_example', description=None, created_date=datetime.datetime(2025, 4, 18, 1, 44, 27, 212086, tzinfo=TzInfo(UTC)), num_replicates=1, has_query=True)

Generate with PoET-2 using the prompt#

Now let’s use PoET-2 to generate some sequences! Here, we generate 100 sequences with a temperature of 0.3. Lower temperatures typically lead to sequences that better preserve structural constraints, though they may be less diverse. You may need to tune this parameter to achieve the desired diversity.

[12]:

# replace the following with an existing job id to retrieve results for an existing job
generate_job_id: str | None = "ea695a02-3b0e-4758-bae8-65d469e6735c"
if generate_job_id is None:
    generate_job = session.embedding.poet_2.generate(
        prompt=prompt, num_samples=100, temperature=0.3
    )
else:
    generate_job = session.load_job(generate_job_id)
print(generate_job)
_ = generate_job.wait_until_done(verbose=True)

num_records=None job_id='ea695a02-3b0e-4758-bae8-65d469e6735c' job_type=<JobType.poet_generate: '/poet/generate'> status=<JobStatus.SUCCESS: 'SUCCESS'> created_date=datetime.datetime(2025, 4, 18, 1, 44, 31, 494707) start_date=datetime.datetime(2025, 4, 18, 1, 44, 32, 127506) end_date=datetime.datetime(2025, 4, 18, 1, 47, 9, 342806) prerequisite_job_id=None progress_message=None progress_counter=100 sequence_length=None

Waiting: 100%|██████████| 100/100 [00:00<00:00, 1210.13it/s, status=SUCCESS]

We retrieve the generated sequences in a dataframe:

[13]:

generated_seqs_df = pd.DataFrame(generate_job.get())
generated_seqs_df["score"] = generated_seqs_df["score"].apply(np.mean)
generated_seqs_df.head(3)

[13]:
name sequence score
0 generated-sequence-1 MKYTLDDLVGTWKLESSENLDEVLKALGLDFFFRKAANTITPVLNI... -159.79819
1 generated-sequence-2 MKFTLDDFVGVWKMESSENLDEVLKALGVSMLFRKAANTITPTLII... -157.19385
2 generated-sequence-3 MKFTIEDFVGTWKMESSENLDEVLKELGVSMFFRKAANTITPTLVI... -163.90536

In the next sections, we’ll do some exploration of these sequences to validate their properties.

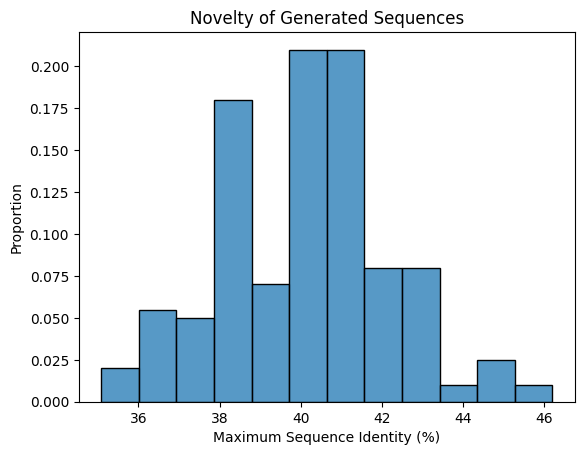

Validate the novelty of the generated sequences#

We validate the novelty of the generated sequences by computing their maximum sequence identity to wild-type (LUCI_OPLGR) and to sequences in the context. First, we define a function to compute sequence identity; it is not necessary to read the function definition:

[14]:

def seqid_to_query(
    query: str,
    target: str,
    scoring: gemmi.AlignmentScoring | None = gemmi.AlignmentScoring("b"),
) -> float:
    result = gemmi.align_string_sequences(
        gemmi.expand_one_letter_sequence(query, gemmi.ResidueKind.AA),
        gemmi.expand_one_letter_sequence(target, gemmi.ResidueKind.AA),
        [],
        scoring,
    )
    return result.calculate_identity(1)

Now, we can use the function to compute and visualize the maximum sequence identities:

[15]:

query_sequences = list(generated_seqs_df["sequence"])
# define the sequences we want to compare to
target_sequences = []
wt = Protein.from_filepath(path=structure_filepath, chain_id="A")[10:]
target_sequences.append(wt.sequence.decode())
for protein in context:
    target_sequences.append(protein.sequence.decode())
# compute the sequence identities
seqids = np.zeros((len(query_sequences), len(target_sequences)), dtype=np.float32)
for i, query in enumerate(query_sequences):
    for j, target in enumerate(target_sequences):
        seqids[i, j] = seqid_to_query(query=query, target=target)
# compute max sequence identities to targets
max_seqids = seqids.max(axis=1)
# visualize the max sequence identities
g = sns.histplot(max_seqids, stat="proportion")
_ = g.set_xlabel("Maximum Sequence Identity (%)")
_ = g.set_ylabel("Proportion")
_ = g.set_title("Novelty of Generated Sequences")
../_images/walkthroughs_PoET-2_inverse_folding_34_0.png

We see that our generated sequences are highly novel, with almost all sequence identities less than 50%, and some at low as ~35%! As additional validation, we should BLAST the generated sequences against a larger set of sequences such as UniProt, but low sequence identity to sequences in the context is generally a good indicator of novelty.

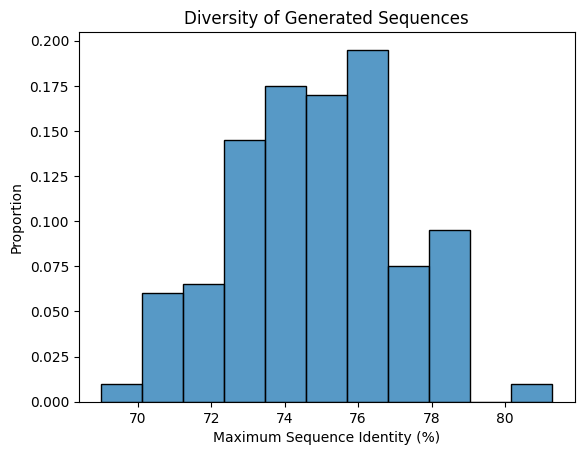

Validate the diversity of generated sequences#

Next, we check that the generated sequences have reasonable diversity between themselves. Like before, we compute the identities and visualize them:

[16]:

# compute the sequence identities
seqids = np.zeros((len(query_sequences), len(query_sequences)), dtype=np.float32)
for i, query in enumerate(query_sequences):
    for j, target in enumerate(query_sequences):
        if i == j:
            continue  # don't compute identity to self
        seqids[i, j] = seqid_to_query(query=query, target=target)
# compute max sequence identities
max_seqids = seqids.max(axis=1)
# visualize the max sequence identities
g = sns.histplot(max_seqids, stat="proportion")
_ = g.set_xlabel("Maximum Sequence Identity (%)")
_ = g.set_ylabel("Proportion")
_ = g.set_title("Diversity of Generated Sequences")
../_images/walkthroughs_PoET-2_inverse_folding_37_0.png

The graph verifies that the generated sequences are diverse, with sequence identities ranging between 65% and 80%.

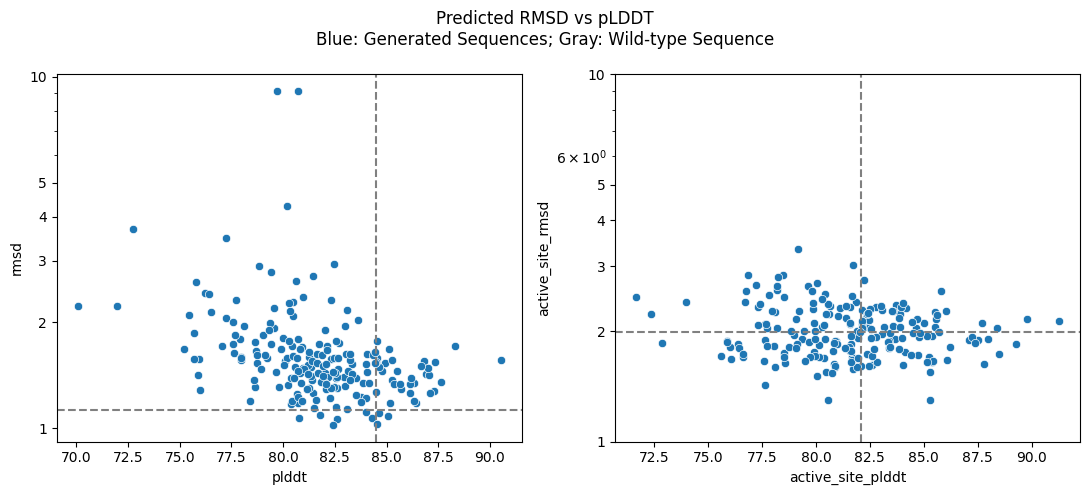

Validate the structures of generated sequences in silico with ESMFold#

Before sending these sequences to the lab for testing, it’s important to evaluate them in silico to ensure they’re predicted to fold into a structure similar to our target. For this, we’ll use ESMFold, which offers fast structure predictions with accuracy comparable to AlphaFold2.

In addition to folding the generated sequences, we’ll also fold the wild-type sequence to establish a baseline for how well ESMFold can fold sequences that are already known to fold into our desired structure:

[17]:

sequences_to_fold = [wt.sequence] + list(generated_seqs_df["sequence"])

# replace the following with an existing job id to retrieve results for an existing job
fold_job_id: str | None = "0c7cf3e7-8b4f-4dbe-9ea4-884077620271"
if fold_job_id is None:
    fold_job = session.fold.esmfold.fold(sequences_to_fold)
else:
    fold_job = session.load_job(fold_job_id)
print(fold_job)
_ = fold_job.wait_until_done(verbose=True)

num_records=None job_id='0c7cf3e7-8b4f-4dbe-9ea4-884077620271' job_type=<JobType.embeddings_fold: '/embeddings/fold'> status=<JobStatus.SUCCESS: 'SUCCESS'> created_date=datetime.datetime(2025, 4, 18, 1, 52, 32, 350156) start_date=datetime.datetime(2025, 4, 18, 1, 52, 34, 830174) end_date=datetime.datetime(2025, 4, 18, 1, 58, 31, 101595) prerequisite_job_id=None progress_message=None progress_counter=100 sequence_length=None

Waiting: 100%|██████████| 100/100 [00:00<00:00, 1420.41it/s, status=SUCCESS]

We retrieve the predicted structures in a dataframe:

[18]:

fold_df = pd.DataFrame(fold_job.get(), columns=["sequence", "pdb_as_string"])
fold_df["sequence"] = fold_df["sequence"].astype(str)
fold_df.head(1)

[18]:
sequence pdb_as_string
0 MVFTLEDFVGRWRQTAGYNLDQVLEQGGVSSLFQNLGVSVTPIQRI... b'PARENT N/A\nATOM 1 N MET A 1 ...

To measure the accuracy of the wild-type structure prediction, we compute four metrics

  • rmsd: the root mean square deviation (RMSD) of the backbone atoms versus the same atoms in the experimental structure

  • plddt: the average pLDDT of the predicted structure

  • active_site_rmsd: the RMSD of all heavy atoms in the active site versus the same atoms in the experimental structure

  • active_site_plddt: the average pLDDT of the predicted active site

[19]:

# the predicted structure of wild-type should be the first row of fold_df
row = fold_df.iloc[0]
assert row["sequence"] == wt.sequence.decode()
# construct a `Protein` object from the predicted structure, and use its helper methods
# to compute the metrics
wt_predicted = Protein.from_string(row["pdb_as_string"], format="pdb", chain_id="A")
wt_rmsd = wt_predicted.rmsd(tgt=wt, backbone_only=True)
wt_plddt = wt_predicted.plddt.mean()
wt_active_site_rmsd = wt_predicted.at(active_site_positions).rmsd(
    tgt=wt.at(active_site_positions)
)
wt_active_site_plddt = wt_predicted.at(active_site_positions).plddt.mean()
# print out the metrics
print(f"{wt_rmsd=:.5f}")
print(f"{wt_plddt=:.5f}")
print(f"{wt_active_site_rmsd=:.5f}")
print(f"{wt_active_site_plddt=:.5f}")

wt_rmsd=1.29252
wt_plddt=83.52392
wt_active_site_rmsd=2.13733
wt_active_site_plddt=80.72222

Based on these metric values, we conclude that ESMFold can fold the wild-type sequence with reasonable accuracy (the values are somewhat lower than ideal, but this is to be expected as this protein has few sequence homologs).

Next, we compute the same metrics for the generated sequences.

[20]:

# first, we create a single dataframe containing the generated sequences and predicted structures
generated_df = generated_seqs_df.merge(fold_df, on="sequence", validate="1:1")
print(f"{len(generated_df)=}")
generated_df.head(1)

len(generated_df)=200

[20]:
name sequence score pdb_as_string
0 generated-sequence-1 MKYTLDDLVGTWKLESSENLDEVLKALGLDFFFRKAANTITPVLNI... -159.79819 b'PARENT N/A\nATOM 1 N MET A 1 ...
[21]:

# next, we create a new dataframe containing the metrics for the generated sequences
generated_stats_records = []
for _, sequence, score, pdb_as_string in generated_df.itertuples(index=False):
    predicted = Protein.from_string(pdb_as_string, format="pdb", chain_id="A")
    generated_stats_records.append(
        {
            "sequence": sequence,
            "score": score,
            "rmsd": predicted.rmsd(tgt=wt, backbone_only=True),
            "plddt": predicted.plddt.mean(),
            "active_site_rmsd": predicted.at(active_site_positions).rmsd(
                tgt=wt.at(active_site_positions)
            ),
            "active_site_plddt": predicted.at(active_site_positions).plddt.mean(),
        }
    )
generated_stats_df = pd.DataFrame.from_records(generated_stats_records)
generated_stats_df.head(1)

[21]:
sequence score rmsd plddt active_site_rmsd active_site_plddt
0 MKYTLDDLVGTWKLESSENLDEVLKALGLDFFFRKAANTITPVLNI... -159.79819 2.215287 74.641228 1.977918 75.234444
[22]:

# examine the summary statistics of the metrics
generated_stats_df.describe()

[22]:
score rmsd plddt active_site_rmsd active_site_plddt
count 200.000000 200.000000 200.000000 200.000000 200.000000
mean -161.012782 1.882326 81.065956 2.010152 80.857407
std 7.746975 1.126495 3.383088 0.376023 3.470914
min -176.050700 0.998200 72.336494 1.381095 72.383331
25% -165.701650 1.394802 78.804457 1.756102 78.519167
50% -162.128625 1.618558 81.353012 1.938064 81.153885
75% -158.975957 2.034806 83.635334 2.142519 83.653889
max -133.977940 9.108552 88.190468 3.640723 89.545006

We visualize the metrics to examine their distribution and compare them to the metrics for wild-type:

[23]:

f, axes = plt.subplots(1, 2, figsize=(11, 5))
sns.scatterplot(data=generated_stats_df, x="plddt", y="rmsd", ax=axes[0])
sns.scatterplot(
    data=generated_stats_df, x="active_site_plddt", y="active_site_rmsd", ax=axes[1]
)
for ax, plddt, rmsd in zip(
    axes, (wt_plddt, wt_active_site_plddt), (wt_rmsd, wt_active_site_rmsd)
):
    ax.set_yscale("log")
    ax.set_yticks([1, 2, 3, 4, 5, 10], [1, 2, 3, 4, 5, 10])
    ax.axvline(plddt, color="gray", ls="--")
    ax.axhline(rmsd, color="gray", ls="--")
f.suptitle("Predicted RMSD vs pLDDT\nBlue: Generated Sequences; Gray: Wild-type Sequence")
f.tight_layout()
../_images/walkthroughs_PoET-2_inverse_folding_50_0.png

From the graphs, we see that most generated sequences have low RMSD (<2A) to the target structure with high confidence (pLDDT > 80). In fact, the predicted structures of some generated sequences are both higher confidence and more similar to the experimentally-solved target structure than the predicted structure of wild-type. This is particularly true in the most critical region of the protein, the active site.

These results suggest that the generated sequences are likely to fold into the desired structure! To further improve our success rate, we may remove sequences with high RMSDs and low pLDDTs. If we need more sequences after filtering, we can easily generate more using the workflow outlined above.

Conclusion#

In this walkthrough, we demonstrated how to use PoET-2 to perform inverse folding, and how to validate the generated sequences in silico. Despite the challenge posed by a target having few sequence homologs, PoET-2 successfully generated sequences predicted to fold into the target structure with high accuracy and confidence. We’re excited to see what sequences you design with PoET-2 - and how you apply it to your own protein design challenges!

Appendix#

Creating a context containing structural homologs#

This section provides code examples demonstrating how to find and sample the diverse structural homologs used to create the context in the “Create the context” section above. In the next cell, we define a bunch of helper functions; it’s not necessary to read them:

[24]:

import io
import requests
import time
import tarfile
from concurrent.futures import ThreadPoolExecutor

import numpy.typing as npt

import scipy
from scipy.spatial.distance import pdist, squareform

from tqdm import tqdm


def run_foldseek(
    query_filepath: Path | str, output_dir: Path, verbose: bool = False
) -> tuple[Path, Path]:
    pdb_result_path = output_dir / "alis_pdb100.m8"
    afdb_result_path = output_dir / "alis_afdb50.m8"
    if pdb_result_path.is_file() and afdb_result_path.is_file():
        return pdb_result_path, afdb_result_path
    output_dir.mkdir(parents=True, exist_ok=True)

    query = Path(query_filepath).read_text()
    databases = ("afdb50", "pdb100")
    mode = "3diaa"
    iterative = False
    ticket = requests.post(
        "https://search.foldseek.com/api/ticket",
        {
            "q": query,
            "database[]": list(databases),
            "mode": mode,
            "iterativesearch": str(iterative).lower(),
        },
    ).json()
    if "id" not in ticket:
        raise ValueError(ticket)
    ticket_id = ticket["id"]
    if verbose:
        print(f"Got ticket: {ticket_id}")

    count = 0
    while True:
        status = requests.get(
            f"https://search.foldseek.com/api/ticket/{ticket_id}"
        ).json()["status"]
        if status == "ERROR":
            raise ValueError(query)
        elif status == "COMPLETE":
            break
        else:
            time.sleep(1)
            count += 1
    if verbose:
        print(f"Ticket {ticket_id} completed in: {count}s")

    download = requests.get(
        f"https://search.foldseek.com/api/result/download/{ticket_id}", stream=True
    )
    file_bytes = io.BytesIO()
    for chunk in download.iter_content(chunk_size=8192):
        file_bytes.write(chunk)
    file_bytes.seek(0)

    with tarfile.open(fileobj=file_bytes, mode="r:gz") as tar:
        for member in tar.getmembers():
            if member.name not in ("alis_afdb50.m8", "alis_pdb100.m8"):
                continue
            extracted_file = tar.extractfile(member)
            assert extracted_file is not None
            with (output_dir / member.name).open("wb") as out_file:
                out_file.write(extracted_file.read())
    return pdb_result_path, afdb_result_path


def foldseek_pdb_result_to_dataframe(path: Path | str) -> pd.DataFrame:
    df = pd.read_csv(path, sep="\t", header=None)
    return pd.DataFrame(
        {
            "pdb_id": df[1].apply(lambda x: x.split()[0][:4]),
            "chain_id": df[1].apply(lambda x: x.split()[0].split("_")[1].split("-")[0]),
            "sim": df[2],
            "sequence": df[18],
            "species": df[20],
        }
    ).drop_duplicates(["pdb_id", "chain_id"])


def foldseek_afdb_result_to_dataframe(path: Path | str) -> pd.DataFrame:
    df = pd.read_csv(path, sep="\t", header=None)
    return pd.DataFrame(
        {"name": df[1], "sim": df[2], "sequence": df[18], "species": df[20]}
    ).drop_duplicates(["sequence"])


def run_openprotein_mafft_alignment(
    sequences: list[bytes | str],
    names: list[str] | None,
    output_path: Path | str,
    verbose: bool = False,
) -> Path:
    # return existing filepath if it already exists
    output_path = Path(output_path)
    if output_path.is_file():
        return output_path
    output_path.parent.mkdir(parents=True, exist_ok=True)
    # otherwise run mafft, write result to disk, and return the filepath
    session = get_session()
    mafft_job = session.align.mafft(sequences=sequences, names=names)
    mafft_job.wait_until_done(verbose=verbose)
    with output_path.open("wb") as fp:
        for name, sequence in mafft_job.get():
            fp.write(b">" + name.encode() + b"\n")
            fp.write(sequence.encode() + b"\n")
    return output_path


def compute_n_eff(
    alignment_path: Path | str,
    identity: float = 50.0,
    min_length: int | None = None,
    max_length: int | None = None,
) -> float:
    # Read alignment
    with Path(alignment_path).open("rb") as f:
        _, prompt_seqs = fasta.parse(f)
    prompt_seqs = np.array(prompt_seqs)
    # Get unique sequences
    prompt_seqs = np.unique(prompt_seqs)
    # Convert sequences to numpy arrays
    prompt_seqs = np.stack(
        [np.frombuffer(s, dtype=np.uint8) for s in prompt_seqs], axis=0
    )
    # Filter by max length
    if min_length is not None or max_length is not None:
        min_length = min_length or 0
        max_length = max_length or 2**32
        lengths = (prompt_seqs != ord(b"-")).sum(axis=-1)
        keep = (lengths >= min_length) & (lengths <= max_length)
        prompt_seqs = prompt_seqs[keep]
    # Compute percent identities
    is_gap = prompt_seqs == ord(b"-")
    one_not_gap = ~(is_gap & is_gap[:, np.newaxis])
    is_match = prompt_seqs == prompt_seqs[:, np.newaxis]
    is_match[~one_not_gap] = (
        False  # don't count positions where both sequences have gaps
    )
    num_not_gap = one_not_gap.sum(axis=-1)
    num_match = is_match.sum(axis=-1)
    pid = num_match / num_not_gap
    weights = (pid >= (identity / 100)).sum(axis=1)
    return float(np.sum(1 / weights))


def sample_n_from_alignment(
    alignment_path: Path | str,
    n: int,
    min_length: int | None = None,
    max_length: int | None = None,
) -> npt.NDArray[np.integer]:
    # Read alignment
    with Path(alignment_path).open("rb") as f:
        _, prompt_seqs = fasta.parse(f)
    names = np.arange(len(prompt_seqs))
    prompt_seqs = np.array(prompt_seqs)
    # Get unique sequences
    prompt_seqs, uind = np.unique(prompt_seqs, return_index=True)
    names = names[uind]
    # Convert sequences to numpy arrays
    prompt_seqs = np.stack(
        [np.frombuffer(s, dtype=np.uint8) for s in prompt_seqs], axis=0
    )
    # Filter by max length
    if min_length is not None or max_length is not None:
        min_length = min_length or 0
        max_length = max_length or 2**32
        lengths = (prompt_seqs != ord(b"-")).sum(axis=-1)
        keep = (lengths >= min_length) & (lengths <= max_length)
        prompt_seqs = prompt_seqs[keep]
        names = names[keep]
    # Perform hierarchical clustering on sequences
    dist = pdist(prompt_seqs, metric="hamming")
    Z = scipy.cluster.hierarchy.average(dist)
    # Sample n clusters
    clusters = scipy.cluster.hierarchy.cut_tree(Z, n)
    # Take the centroid of each cluster
    prompt = []
    prompt_names = []
    for c in range(n):
        loc = clusters[:, 0] == c
        cluster_seqs = prompt_seqs[loc]
        cluster_names = names[loc]
        cluster_dist = squareform(dist)[loc, :][:, loc]
        avg_dist = cluster_dist.mean(axis=1)
        i = np.argmin(avg_dist)  # get the centroid
        s = cluster_seqs[i]
        name = cluster_names[i]
        prompt.append(s)
        prompt_names.append(name)
    prompt = np.stack(prompt, axis=0)
    prompt_names = np.array(prompt_names)
    return prompt_names


def download_pdb_structures(pdb_ids: list[str], output_dir: Path | str):
    output_dir = Path(output_dir)
    output_dir.mkdir(parents=True, exist_ok=True)

    def _download_pdb_structure(pdb_id: str):
        output_path = output_dir / f"{pdb_id.lower()}.cif"
        if output_path.is_file():
            return
        url = "https://files.rcsb.org/view/" + pdb_id.lower() + ".cif"
        response = requests.get(url)
        if response.status_code != 200:
            raise ValueError(pdb_id)
        output_path.write_bytes(response.content)

    with ThreadPoolExecutor() as executor:
        futures = []
        for pdb_id in pdb_ids:
            future = executor.submit(_download_pdb_structure, pdb_id)
            futures.append(future)
        for future in tqdm(futures):
            future.result()

The headers for the rest of this section will follow the steps outlined in the “Create the context” section.

Step 1: Search for structural homologs#

To run Foldseek to find structural homologs, we can use the run_foldseek helper function. This function accepts an input structure file, searches for structural homologs in PDB and AFDB, and writes the result to the specified output directory.

NOTE: run_foldseek uses the public Foldseek server which is not operated by OpenProtein. Exercise caution when working with private structure files that are not meant to be public.

[25]:

foldseek_pdb_result_path, foldseek_afdb_result_path = run_foldseek(
    # NB: 7snt.cif contains the structure of a NanoLuc, a variant of LUCI_OPLGR
    query_filepath=DATA_DIR / "structures" / "7snt.cif",
    output_dir=DATA_DIR / "foldseek" / "7snt",
    verbose=True,
)
print(f"{foldseek_pdb_result_path=}")
print(f"{foldseek_afdb_result_path=}")

foldseek_pdb_result_path=PosixPath('data/PoET-2_inverse_folding_small_luc_example/foldseek/7snt/alis_pdb100.m8')
foldseek_afdb_result_path=PosixPath('data/PoET-2_inverse_folding_small_luc_example/foldseek/7snt/alis_afdb50.m8')

run_foldseek returns the paths to two files. Each file is a BLAST formatted file listing structural homologs found by Foldseek. The first file contains hits found in PDB, and the second file contains hits found in AFDB.

Since the public Foldseek server is not deterministic, for the remainder of this example, we’ll use the following precomputed Foldseek result files:

[26]:

foldseek_pdb_result_path = DATA_DIR / "precomputed_foldseek_7snt_pdb100.m8"
foldseek_afdb_result_path = DATA_DIR / "precomputed_foldseek_7snt_afdb50.m8"

Step 2: Sample a diverse subset (from PDB)#

We process the Foldseek result file for hits found in PDB first.

Step 2.1: Filter out sequences with high identity to LUCI_OPLGR/NanoLuc to encourage novelty#

[27]:

# read the Foldseek result file for PDB
foldseek_pdb_result_df = foldseek_pdb_result_to_dataframe(foldseek_pdb_result_path)
print(f"{len(foldseek_pdb_result_df)=}")
foldseek_pdb_result_df.head()

len(foldseek_pdb_result_df)=399

[27]:
pdb_id chain_id sim sequence species
0 7snt A 100.0 MVFTLEDFVGDWRQTAGYNLDQVLEQGGVSSLFQNLGVSVTPIQRI... Oplophorus gracilirostris
1 7vsx A 90.5 EFFTLEDFVGDWRQTAGYNQDQVLEQGGLSSLFQNLGVSVTPIQRI... Oplophorus gracilirostris
2 7snt B 87.9 MVFTLEDFVGDWRQTAGYNLDQVLEQGGVSSLFQGVSVTPIQRIVL... Oplophorus gracilirostris
3 8bo9 B 91.1 NMVFTLEDFVGRWRQTAGYNLDQVLEQGGVSSLFQNLGVSVTPIQR... synthetic construct
4 5b0u B 91.7 EFFTLEDFVGDWRQTAGYNLDQVLEQGGVSSLFQNLGVSVTPIQRI... Oplophorus gracilirostris
[28]:

# filter out sequences with high identity (>= 70%)
foldseek_pdb_result_df = foldseek_pdb_result_df[foldseek_pdb_result_df["sim"] < 70]
print(f"{len(foldseek_pdb_result_df)=}")

len(foldseek_pdb_result_df)=385

Step 2.2: Create a multiple sequence alignment (MSA) of the remaining sequences#

To create an MSA, we can use the helper function run_openprotein_mafft_alignment, which uses OpenProtein’s REST API to compute an MSA using MAFFT. This function accepts a list of sequences to align, and writes the resulting MSA to the specified filepath:

[29]:

foldseek_pdb_alignment_path = run_openprotein_mafft_alignment(
    sequences=list(foldseek_pdb_result_df["sequence"]),
    names=list(foldseek_pdb_result_df["pdb_id"] + "_" + foldseek_pdb_result_df["chain_id"]),
    output_path=DATA_DIR / "MSAs" / "foldseek_7snt_pdb_result.fasta",
    verbose=True,
)
print(f"{foldseek_pdb_alignment_path=}")

Waiting: 100%|██████████| 100/100 [02:37<00:00,  1.58s/it, status=SUCCESS]

foldseek_pdb_alignment_path=PosixPath('data/PoET-2_inverse_folding_small_luc_example/MSAs/foldseek_7snt_pdb_result.fasta')

Once again, to ensure that the remainder of this example is deterministic, we’ll use a precomputed MSA:

[30]:

foldseek_pdb_alignment_path = DATA_DIR / "precomputed_foldseek_7snt_pdb_result.fasta"

Steps 2.3, 2.4, and 2.5: Use the MSA to perform hierarchical clustering, and sample diverse sequences using the clustering#

For convenience, the full text of each step is reproduced below:

  • 2.3: Compute pairwise sequence identities using the MSA.

  • 2.4: Perform hierarchical clustering using pairwise identity as the distance metric.

  • 2.5: Select a desired number of clusters and extract the cluster centroids as representative sequences.

Before we perform sampling, we need to determine the number of sequences to sample. We do this by computing the number of effective sequences (Neff) at 50% identity using the helper function compute_n_eff. We also limit the maximum sequence length to 500, since the sequence we want to generate only has length 171.

[31]:

foldseek_pdb_n_eff = compute_n_eff(foldseek_pdb_alignment_path, identity=50, max_length=500)
foldseek_pdb_n_eff

[31]:

98.73192556728901

Neff is about 100, so we’ll sample that many sequences.

The three substeps (Steps 2.3, 2.4, and 2.5) can be performed with the function sample_n_from_alignment.

[32]:

foldseek_pdb_sampled_idxs = sample_n_from_alignment(
    foldseek_pdb_alignment_path, n=100, max_length=500
)
print(len(foldseek_pdb_sampled_idxs))

100

The function returns a list of indices of the sequences in the MSA that should be included in our sample. Since the sequences in the MSA were obtained from the dataframe foldseek_pdb_result_df, we can index that dataframe to obtain the final set of sample sequences and their corresponding metadata:

[33]:

foldseek_pdb_result_df = foldseek_pdb_result_df.iloc[foldseek_pdb_sampled_idxs]
foldseek_pdb_result_df.head()

[33]:
pdb_id chain_id sim sequence species
245 5xnw A 20.0 MQARALQDLFDAQGVGVPVEHALRMQAVARQTNTVFGIRPVERIVT... Pseudomonas aeruginosa
248 3ge2 A 16.3 QPVAQPTDIDGTYTGQDDGDRITLVVTGTTGTWTELESDGDQKVKQ... Streptococcus pneumoniae TIGR4
249 5xi9 A 13.2 HMGDKSENVQDLLLLDVAPLSLGLETAGGVMTALIKRNSTIPTKQT... Homo sapiens
258 5e86 A 13.4 DVCPLTLGIETVGGVMTKLIPRNTVVPTKKSQIFSVGGTVTIKVYE... Homo sapiens
568 3qnj B 9.1 VLLLDVTPLSLGIETMGGVMTTLIAKNTTIPTKHSQVFSTAEDNQS... Escherichia coli K-12

Recall that the dataframe context_pdb_chains_df contains the pdb ids and chain ids of the PDB structures used in the context in our small luciferase inverse folding example. Let’s verify that the pdb ids and chain ids in foldseek_pdb_result_df match those in context_pdb_chains_df:

[34]:

assert (
    foldseek_pdb_result_df[["pdb_id", "chain_id"]]
    .reset_index(drop=True)
    .equals(context_pdb_chains_df)
)
print("Success! The pdb ids and chain ids in the two dataframes match!")

Success! The pdb ids and chain ids in the two dataframes match!

Lastly, we download the structure files of the sampled sequences from the PDB:

[35]:

download_pdb_structures(
    pdb_ids=list(foldseek_pdb_result_df["pdb_id"]), output_dir=DATA_DIR / "structures"
)

100%|██████████| 100/100 [00:00<00:00, 359717.32it/s]

Step 2: Sample a diverse subset (from AFDB)#

Next, we process the Foldseek result file for hits found in AFDB. The process is essentially the same as processing the result file for PDB, with only minor adjustments. We show the code below, and make note of any adjustments.

Step 2.1: Filter out sequences with high identity to LUCI_OPLGR/NanoLuc to encourage novelty#

This step is the same as when processing PDB hits, except that we use the function foldseek_afdb_result_to_dataframe instead of foldseek_pdb_result_to_dataframe to read the results into a dataframe.

[36]:

foldseek_afdb_result_df = foldseek_afdb_result_to_dataframe(foldseek_afdb_result_path)
print(f"{len(foldseek_afdb_result_df)=}")
foldseek_afdb_result_df.head()

len(foldseek_afdb_result_df)=1368

[36]:
name sim sequence species
0 AF-Q9GV45-F1-model_v4 Oplophorus-luciferin 2-m... 82.1 MAYSTLFIIALTAVVTQASSTQKSNLTFTLADFVGDWQQTAGYNQD... Oplophorus gracilirostris
1 AF-A0A6V7X7K0-F1-model_v4 Hypothetical protein 18.9 MADKFVGKWKLTDSDNFNDYMKEVGVGMLARTGAAAVKPVLEFVVD... Meloidogyne enterolobii
2 AF-F6W8U8-F1-model_v4 FABP domain-containing p... 16.6 MAKAVAGNWTLDRSENYDDFLKAAGMNSIKRAMAVKLGGSLSIENV... Ciona intestinalis
3 AF-A0A267EGP2-F1-model_v4 FABP domain-containi... 20.1 MSTFEGKWQMTSSENFDAYMKALGTSFLVRKAAAAATPVQDIRCHG... Macrostomum lignano
4 AF-C4N147-F1-model_v4 Sodium/calcium exchanger... 17.1 MAADLAGKWILESSENFDDYMKAVGVGMVMRKMANAATPTQEIKID... Doryteuthis pealeii
[37]:

# filter out sequences with high identity (>= 70%)
foldseek_afdb_result_df = foldseek_afdb_result_df[foldseek_afdb_result_df["sim"] < 70]
print(f"{len(foldseek_afdb_result_df)=}")

len(foldseek_afdb_result_df)=1367

Step 2.2: Create a multiple sequence alignment (MSA) of the remaining sequences#

[38]:

foldseek_afdb_alignment_path = run_openprotein_mafft_alignment(
    sequences=list(foldseek_afdb_result_df["sequence"]),
    names=list(foldseek_afdb_result_df["name"]),
    output_path=DATA_DIR / "MSAs" / "foldseek_7snt_afdb_result.fasta",
    verbose=True,
)
print(f"{foldseek_afdb_alignment_path=}")

Waiting: 100%|██████████| 100/100 [00:56<00:00,  1.76it/s, status=SUCCESS]

foldseek_afdb_alignment_path=PosixPath('data/PoET-2_inverse_folding_small_luc_example/MSAs/foldseek_7snt_afdb_result.fasta')

[39]:

foldseek_afdb_alignment_path = DATA_DIR / "precomputed_foldseek_7snt_afdb_result.fasta"

Steps 2.3, 2.4, and 2.5: Use the MSA to perform hierarchical clustering, and sample diverse sequences using the clustering#

When processing AFDB hits, we set a stricter filter by length (min length 100 and max length 300 instead of simply max length 500) because there are many more AFDB hits, so we can impose a stricter filter while retaining lots of sequence data.

[40]:

foldseek_afdb_n_eff = compute_n_eff(
    foldseek_afdb_alignment_path, identity=50, min_length=100, max_length=300
)
foldseek_afdb_n_eff

[40]:

762.8258143602184

Even with the stricter sequence length filter, Neff is much larger for AFDB hits than PDB hits (by a factor of >7). Since it is generally not necessary to use PoET-2 with so many sequences in the context, and very large contexts makes inference slow, we sample just 300 sequences from the AFDB hits, instead of Neff=~763 hits.

[41]:

foldseek_afdb_sampled_idxs = sample_n_from_alignment(
    foldseek_afdb_alignment_path, n=300, min_length=100, max_length=300
)
print(len(foldseek_afdb_sampled_idxs))

300

[42]:

foldseek_afdb_result_df = foldseek_afdb_result_df.iloc[foldseek_afdb_sampled_idxs]
foldseek_afdb_result_df.head()

[42]:
name sim sequence species
1835 AF-A0A7J9FSS2-F1-model_v4 Uncharacterized protein 5.4 MVSLVITRNIFRLLYAYTTSLSIRCLQVATGQVASTGMVALSYVQK... Gossypium trilobum
602 AF-A0A348WGM0-F1-model_v4 DUF490 domain-contai... 11.5 SDPEITFTSDPDLPQDEVIARLIFGRGIDSISAFQAAQLASAVATL... Roseovarius nubinhibens
362 AF-A0A3D0H8P6-F1-model_v4 Uncharacterized protein 14.8 VESLLAQAKEQWDSDPAKAQKLLEQALSLDPNHFDAVMQLGRLLTV... Syntrophobacteraceae bacterium
1896 AF-A0A5D2CRZ8-F1-model_v4 Uncharacterized protein 9.8 MADVIYHAMSFVDLQFPNGQLTYVSYEGLTTSAFLPLCGGLLQAQG... Gossypium darwinii
909 AF-A0A645C051-F1-model_v4 Plastocyanin-like do... 7.2 METNVIEFEAKTDGDWFFHCHILYHMMAGMNRVFAVGDYQNPLLPD... bioreactor metagenome

Let’s verify that the sampled sequences match the sequences in the AFDB context:

[43]:

assert {s.encode() for s in foldseek_afdb_result_df["sequence"]} == {p.sequence for p in afdb_context}
print("Success! The sampled sequences and the sequences in the AFDB context match!")

Success! The sampled sequences and the sequences in the AFDB context match!

Since we didn’t use structures for the AFDB hits, we don’t need to download them.

Conclusion#

We’ve now seen how to programmatically sample a diverse set of structural homologs to build a context for PoET-2. As with other forms of prompt engineering, designing the optimal context—choosing which sequences and structures to include—is both a science and an art. Don’t hesitate to experiment with alternative homology search methods and sampling strategies to suit your specific goals!

[ ]:



[ ]:
