Using ESMFold2

ESMFold2 is the latest generation of the ESM structure-prediction family (Biohub/esm). Unlike first-generation ESMFold, it predicts full biomolecular complexes — multiple protein chains, nucleic acids, and small-molecule ligands — with a diffusion-based decoder, and can optionally condition on a multiple sequence alignment (MSA) for improved accuracy.

Two variants are available:

• ESMFold2Model (session.fold.esmfold2) — the full model; accepts an optional MSA per protein chain.

• ESMFold2FastModel (session.fold.esmfold2_fast) — a single-sequence variant for fast predictions without an MSA.

First-generation ESMFold is still available via session.fold.esmfold for quick single-chain, single-sequence predictions. It does not support ligands, nucleic acids, multi-chain complexes, or MSA conditioning — reach for ESMFold2 when you need any of those. See the note on ESMFold at the end of this guide.

What you need before getting started

Connect to your session and define the sequences you want to fold. The example here is a two-chain complex built from Interleukin-2:

import openprotein
from openprotein.molecules import Complex, Ligand, Protein

# Login to your session
session = openprotein.connect()

sequence = "MYRMQLLSCIALSLALVTNSAPTSSSTKKTQLQLEHLLLDLQMILNGINNYKNPKLTRMLTFKFYMPKKATELKHLQCLEEELKPLEEVLNLAQSKNFHLRPRDLISNINVIVLELKGSEP"

Getting the model

Create the model object for ESMFold2:

esmfold2 = session.fold.esmfold2
help(esmfold2.fold)

Help on method fold in module openprotein.fold.esmfold2:

fold(
    sequences: Sequence[Complex | Protein | str | bytes] | MSAFuture,
    diffusion_samples: int = 1,
    num_recycles: int = 3,
    num_steps: int = 200,
    step_scale: float | None = None,
    seed: int | None = None,
    **_
) -> FoldResultFuture method of openprotein.fold.esmfold2.ESMFold2Model instance
    Request structure prediction with ESMFold2.

    Parameters
    ----------
    sequences : Sequence[Complex | Protein | str | bytes] | MSAFuture
        List of complexes to fold. `Protein` objects must be tagged with
        an `msa`, which can be `Protein.single_sequence_mode` for single
        sequence mode. Alternatively, supply an `MSAFuture` to use all
        query sequences as a multimer.
    diffusion_samples : int
        Number of diffusion samples to use.
    num_recycles : int
        Number of recycling steps to use.
    num_steps : int
        Number of sampling steps to use.
    step_scale : float | None
        Scaling factor for diffusion steps.
    seed : int | None
        Seed for the diffusion sampler.

    Returns
    -------
    FoldResultFuture
        Future for the folding result.

Predicting a complex

Build a Complex of named chains. Each chain is a Protein that must declare how it is conditioned — here we use Protein.single_sequence_mode to fold without an MSA:

chain_a = Protein(sequence)
chain_a.msa = Protein.single_sequence_mode
chain_b = Protein(sequence)
chain_b.msa = Protein.single_sequence_mode

complex = Complex(chains={"A": chain_a, "B": chain_b})

future = esmfold2.fold(
    [complex],
    num_recycles=3,        # trunk recycling iterations
    num_steps=50,          # diffusion sampling steps (default 200; fewer is faster)
    diffusion_samples=1,   # number of structure samples to draw
    seed=0,
)
future

FoldJob(num_records=1, job_id='90535dff-d152-457f-9aee-5db886b2eb40', job_type=<JobType.embeddings_fold: '/embeddings/fold'>, status=<JobStatus.PENDING: 'PENDING'>, created_date=datetime.datetime(2026, 6, 4, 14, 27, 40, 226796, tzinfo=TzInfo(0)), start_date=None, end_date=None, prerequisite_job_id=None, progress_message=None, progress_counter=0, sequence_length=None, failure_message=None)

The runtime hyperparameters trade speed for accuracy: num_recycles controls how many times the trunk refines its representation, num_steps is the number of diffusion sampling steps (the default is 200; we use fewer here for a quick demo), and diffusion_samples draws multiple independent structure samples per input. seed makes a run reproducible.

Wait for the job to complete with wait_until_done():

future.wait_until_done(verbose=True, timeout=900)

Waiting: 100%|██████████| 100/100 [04:03<00:00,  2.43s/it, status=SUCCESS]

True

Folding with a ligand

A key capability of ESMFold2 — unavailable in first-generation ESMFold — is co-folding small-molecule ligands alongside protein chains. Add a Ligand chain by SMILES string or by Chemical Component Dictionary (CCD) code:

ligand_complex = Complex(chains={"A": chain_a})
ligand_complex.set_chain("L", Ligand(smiles="CCO"))  # ethanol, by SMILES
# ...or by CCD code: ligand_complex.set_chain("L", Ligand(ccd="HEM"))

ligand_future = esmfold2.fold([ligand_complex], num_steps=50, seed=0)
ligand_future.wait_until_done(verbose=True, timeout=900)

Waiting: 100%|██████████| 100/100 [00:05<00:00, 18.86it/s, status=SUCCESS]

True

Conditioning on an MSA

The full esmfold2 variant can condition on an MSA for improved accuracy. Attach an MSA to a protein chain by assigning its msa attribute an MSA created with session.align.create_msa:

# msa = session.align.create_msa(sequence.encode())
# chain = Protein(sequence)
# chain.msa = msa  # an MSAFuture or MSA id
# future = esmfold2.fold([chain])

esmfold2-fast is a single-sequence model and rejects chains that carry an MSA — use Protein.single_sequence_mode with it instead.

Fast single-sequence predictions with ESMFold2-Fast

When you don’t need an MSA, esmfold2-fast is a lighter-weight, faster variant. It accepts the same inputs and hyperparameters, but every protein chain must use Protein.single_sequence_mode:

esmfold2_fast = session.fold.esmfold2_fast

fast_chain = Protein(sequence)
fast_chain.msa = Protein.single_sequence_mode
fast_future = esmfold2_fast.fold([fast_chain], num_steps=50, seed=0)
fast_future.wait_until_done(verbose=True, timeout=900)

Waiting: 100%|██████████| 100/100 [04:47<00:00,  2.87s/it, status=SUCCESS]

True

Retrieving the results

Fetch the results with get(), which returns a list of Structure objects — one per input. Each Structure holds one Complex per diffusion sample:

results = future.get()
structure = results[0]
complex = structure[0]               # first diffusion sample
protein = complex.get_protein("A")   # chains are named alphabetically

print("Predicted structure:", structure)
print("Chain A sequence:", protein.sequence)

Predicted structure: <openprotein.molecules.structure.Structure object at 0x127a534d0>
Chain A sequence: b'MYRMQLLSCIALSLALVTNSAPTSSSTKKTQLQLEHLLLDLQMILNGINNYKNPKLTRMLTFKFYMPKKATELKHLQCLEEELKPLEEVLNLAQSKNFHLRPRDLISNINVIVLELKGSEP'

Visualize the structure using molviewspec:

%pip install molviewspec
from molviewspec import create_builder

def display_structure(structure_string):
    builder = create_builder()
    structure = builder.download(url="mystructure.cif")\
        .parse(format="mmcif")\
        .model_structure()\
        .component()\
        .representation()\
        .color_from_source(schema="atom",
                            category_name="atom_site",
                            field_name="auth_asym_id",
                            palette={"kind": "categorical",  # color by chain
                                     "colors": ["blue", "red", "green", "orange"],
                                     "mode": "ordinal"}
                          )
    return builder.molstar_notebook(data={'mystructure.cif': structure_string}, width=500, height=400)

display_structure(structure.to_string(format="cif"))

Requirement already satisfied: molviewspec in /Users/jmage/Projects/openprotein/openprotein-docs/.pixi/envs/dev-nb/lib/python3.14/site-packages (1.8.1)
Requirement already satisfied: pydantic<3,>=1 in /Users/jmage/Projects/openprotein/openprotein-docs/.pixi/envs/dev-nb/lib/python3.14/site-packages (from molviewspec) (2.12.5)
Requirement already satisfied: annotated-types>=0.6.0 in /Users/jmage/Projects/openprotein/openprotein-docs/.pixi/envs/dev-nb/lib/python3.14/site-packages (from pydantic<3,>=1->molviewspec) (0.7.0)
Requirement already satisfied: pydantic-core==2.41.5 in /Users/jmage/Projects/openprotein/openprotein-docs/.pixi/envs/dev-nb/lib/python3.14/site-packages (from pydantic<3,>=1->molviewspec) (2.41.5)
Requirement already satisfied: typing-extensions>=4.14.1 in /Users/jmage/Projects/openprotein/openprotein-docs/.pixi/envs/dev-nb/lib/python3.14/site-packages (from pydantic<3,>=1->molviewspec) (4.15.0)
Requirement already satisfied: typing-inspection>=0.4.2 in /Users/jmage/Projects/openprotein/openprotein-docs/.pixi/envs/dev-nb/lib/python3.14/site-packages (from pydantic<3,>=1->molviewspec) (0.4.2)
Note: you may need to restart the kernel to use updated packages.

Confidence scores

ESMFold2 returns per-sample confidence scores via get_confidence(). Each entry is an ESMFold2Confidence with the complex pTM/ipTM, the mean complex pLDDT, and per-chain breakdowns:

confidence = future.get_confidence()[0]  # one list per input; one entry per diffusion sample
c = confidence[0]

print("pTM:", c.ptm)
print("ipTM:", c.iptm)
print("complex pLDDT:", c.complex_plddt)
print("per-chain pTM:", c.chains_ptm)
print("pairwise chain ipTM:", c.pair_chains_iptm)

pTM: 0.23306608200073242
ipTM: 0.07277470082044601
complex pLDDT: 0.39403602480888367
per-chain pTM: {'0': 0.2655980587005615, '1': 0.26771098375320435}
pairwise chain ipTM: {'0': {'0': 0.2655980587005615, '1': 0.06164408102631569}, '1': {'0': 0.06224282458424568, '1': 0.26771098375320435}}

PAE and pLDDT arrays

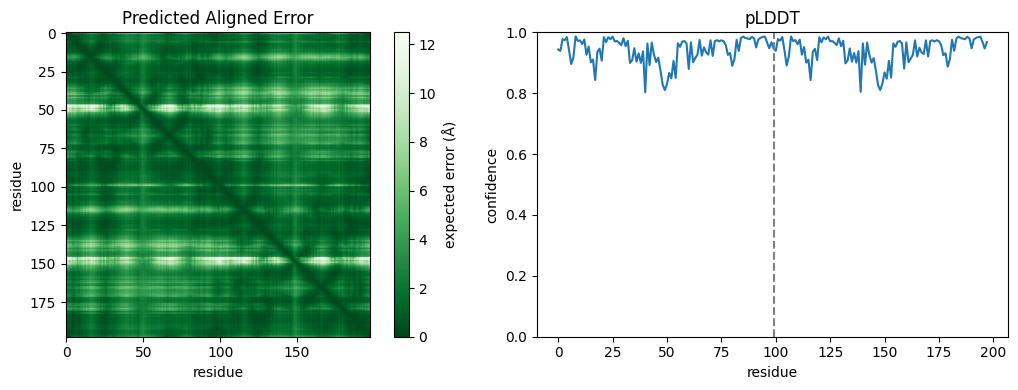

The PAE (Predicted Aligned Error) is an N × N matrix estimating the expected error between residue pairs; pLDDT is the per-residue confidence. Both are returned as NumPy arrays, one per input:

pae = future.get_pae()[0]
plddt = future.get_plddt()[0]

print("PAE matrix shape:", pae.shape)
print("pLDDT shape:", plddt.shape)

PAE matrix shape: (1, 242, 242)
pLDDT shape: (1, 242)

A note on ESMFold (first generation)

First-generation ESMFold remains available via session.fold.esmfold for quick single-chain, single-sequence structure predictions:

# esm = session.fold.esmfold.fold([sequence.encode()], num_recycles=1)
# structure = esm.get()[0]

ESMFold (v1) does not support ligands, nucleic acids, multi-chain complexes, or MSA conditioning. Use ESMFold2 (or esmfold2-fast) whenever you need any of those capabilities; otherwise the first-generation model is a fast option for single-sequence monomers.

Next steps

Save your structure for future use, or compare it against another predictor such as AlphaFold2, Boltz, or Protenix-v2:

with open("esmfold2_prediction.cif", "w") as f:
    f.write(structure.to_string(format="cif"))
